high pressure reactor

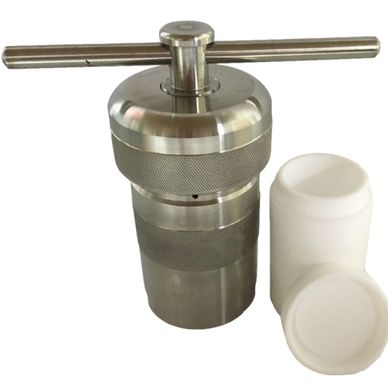

Hydrothermal synthesis reactor
Hydrothermal synthesis reactor
Hydrothermal synthesis reactor
material: 304/316 stainless steel
volume: 10-1000mL
temperature: 0-240 °C
pressure: 0-6 mPa
liner: PTFE/PPL/stainless steel

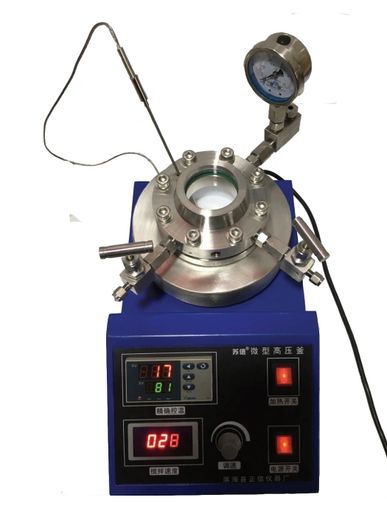

PHOTOCHEMICAL reactor
Hydrothermal synthesis reactor
Hydrothermal synthesis reactor
material: 304/316 stainless steel
volume: 25-2000mL
temperature: 0-240 °C
pressure: 0-40 mPa
liner: PTFE/PPL
window: quartz glass
high pressure reactor
Hydrothermal synthesis reactor
Stainless steel high pressure reactor
flanged lid
material: 304/316 stainless steel
volume: 25-1000mL
temperature: 0-600 °C
pressure: 10-60 mPa
liner: PTFE/PPL/stainless steel
others: pressure guage, temperature measuring hole, sample port, explosion-proof valve.
Stainless steel high pressure reactor
multiple-CHAINED HIGH PRESSURE stirring REACTOR
Stainless steel high pressure reactor
threaded lid
material: 304/316 stainless steel
volume: 25-1000mL
temperature: 0-280 °C
pressure: 0-6 mPa
liner: PTFE/PPL/stainless steel
others: pressure guage, temperature measuring hole, sample port, explosion-proof valve.
INTELLIGENT TEMPERATURE CONTROL REACTOR
multiple-CHAINED HIGH PRESSURE stirring REACTOR
multiple-CHAINED HIGH PRESSURE stirring REACTOR
material: 316L SS/ 310S hastelloy
volume: 25-2000mL
temperature: 0-600 °C
pressure: 0-60 mPa
liner: 316L SS/ 310S hastelloy/Titanium
others: pressure guage, temperature measuring hole, sample port, explosion-proof valve.
Module heating
heating power: 1500w
accuracy: ±0.1 °C ~± 1 °C
PID AI CONTROLLER
multiple-CHAINED HIGH PRESSURE stirring REACTOR
multiple-CHAINED HIGH PRESSURE stirring REACTOR
multiple-CHAINED HIGH PRESSURE stirring REACTOR
reactor number: 2/4/6/8
material: 304 SS/316L SS/ 310S hastelloy
volume: 5mL
temperature: 0-400 °C
pressure: 0-40 mPa
others: pressure guage, temperature measuring hole, sample port, explosion-proof valve.
Module heating
heating power: 1500w
accuracy: ±0.1 °C ~± 1 °C
PID AI CONTROLLER
speed: 0-2500rpm(magnetic stirrer)
multiple-parallelED magnetic stirring REACTOR
multiple-parallelED MECHANICAL stirring REACTOR
multiple-parallelED magnetic stirring REACTOR
Independant operating between reactors
reactor number: 2/3/4/5/6
material: 316L SS
temperature: 0-400 °C
pressure: 16 mPa
liner: PTFE
others: pressure guage, temperature measuring hole, sample port, explosion-proof valve.
Module heating
heating power: 1500w
accuracy: ±0.1 °C ~± 1 °C
PID AI CONTROLLER
speed: 0-2000rpm
magnetic stirrer with display
high pressure PHOTOCHEMICAL reactor
multiple-parallelED MECHANICAL stirring REACTOR
multiple-parallelED magnetic stirring REACTOR
material: 304/316 stainless steel
volume: 25-2000mL
temperature: 0-600 °C
pressure: 0-40 mPa
liner: PTFE/PPL
window: quartz glass
others: pressure guage, temperature measuring hole, sample port, explosion-proof valve.
multiple-parallelED MECHANICAL stirring REACTOR
multiple-parallelED MECHANICAL stirring REACTOR
multiple-parallelED MECHANICAL stirring REACTOR
Independant operating between reactors
reactor number: 2/3/4/5/6
material: 316L SS
temperature: 0-400 °C
pressure: 16 mPa
liner: PTFE
others: pressure guage, temperature measuring hole, sample port, explosion-proof valve.
Module heating
heating power: 1500w
accuracy: ±0.1 °C ~± 1 °C
PID AI CONTROLLER
speed: 0-2000rpm
mechanical stirrer with display
magnetic stirring REACTOR
photochemical magnetic stirring REACTOR
multiple-parallelED MECHANICAL stirring REACTOR
volume: 25-1000mL
material: 304SS/316L SS/310S hastelloy
temperature: 0-400 °C
pressure: 0-40mPa
liner: PTFE/PPL/SS/hastelloy/Titanium
others: pressure guage, temperature guage, sample port, explosion-proof.
Module heating
heating power: 1500w
accuracy: ±0.1 °C ~± 1 °C
PID AI CONTROLLER
speed: 0-1900rpm
magnetic stirrer with display
mechanical stirring & heating REACTOR
photochemical magnetic stirring REACTOR
photochemical magnetic stirring REACTOR
volume: 25-1000mL
material: 304SS/316L SS/310S hastelloy
temperature: 0-400 °C
pressure: 0-40mPa
liner: PTFE/PPL/SS/hastelloy/Titanium
others: pressure guage, temperature guage, sample port, explosion-proof.
Module heating
heating power: 1500w
accuracy: ±0.1 °C ~± 1 °C
PID AI CONTROLLER
speed: 0-1900rpm
mechanical stirrer with display
photochemical magnetic stirring REACTOR
photochemical magnetic stirring REACTOR
photochemical magnetic stirring REACTOR
volume: 25-1000mL
material: 304SS/316L SS/310S hastelloy
temperature: 0-400 °C
pressure: 0-40mPa
window: quartz glass
liner: PTFE/PPL/SS/hastelloy/Titanium
others: pressure guage, temperature guage, sample port, explosion-proof.
Module heating
heating power: 1500w
accuracy: ±0.1 °C ~± 1 °C
PID AI CONTROLLER
speed: 0-1900rpm
magnetic stirrer with display
ultrasonic electrode reactor
ultrasonic electrode reactor
ultrasonic electrode reactor
volume: 25-1000mL
material: /316L SS/310S hastelloy temperature: 0-400 °C
pressure: 0-40mPa
liner: PTFE/PPL/SS/hastelloy/Titanium
others: pressure guage, temperature guage, sample port, explosion-proof.
electrode: 304ss coated with PTFE
Module heating
heating power: 800w
sonicator power: 400w (optional)
frequency: 25KHz
oilbath reactor
ultrasonic electrode reactor
ultrasonic electrode reactor
Oil Bath
volume: 50-1000mL
material: 304 SS/316L SS/310S hastelloy temperature: ambient temp-300 °C
pressure: 0-40mPa
liner: PTFE/PPL/SS
others: K type thermocouple；pump; time relay;
Module heating；Magnetic coupling stirring.
speed: 0-1500rpm with display
heating power: 1200w*2
oilbath reactor
ultrasonic electrode reactor
oilbath reactor
CO2 high temp & pressure micro magnetic stirrer reactor
volume: 50-500mL
material: 304 SS/316L SS/310S hastelloy temperature: 0-350 °C
pressure: 10-60mPa
liner: PTFE/PPL/SS/hastelloy/Titanium
others: K type thermocouple；pump; time relay;
Module heating；Magnetic coupling stirring.
speed: 0-1900rpm with display
heating power: 1500w
